Shoreline Shader Breakdown

(Image)

Intro

Heya! I’ve had a couple mini-breakdown threads related to shoreline/coastline water shaders on twitter/X for while, but since that site might implode at any minute… it’s probably best to convert them into a post here. I could just copy those threads, but wanted to go into a bit more detail. And as both shaders have some similarities/overlap, I decided to merge them and basically rewrite everything… (whoops? 😅)

As with most of my work, I lean more on the stylised side, though it’s possible it could be adapted to work in a realistic/PBR style. And to be clear, I’m focusing on shoreline-specific parts of the water shader in this post, not sand material(s) or other details in the water which you might want - such as refraction or caustics (for that see the Water Shader Breakdown or other links under the Water section of the Resources page). The shader does use some transparency / alpha blending to darken the material below though, to simulate the sand being wet.

There’s two main ways I’m discussing that can be used to map the waves to the scene - using the Depth Texture or Manual UVs. Below I’ve listed some notes/pros/cons of each method. The later sections work for either of those setups.

Sections :

Depth-Based Shoreline

One of the simplest ways to have water interact with the rest of the scene is by using the depth texture, such as the very common “depth intersection / edge foam” technique you see in a lot of toon/stylised water shader tutorials. For example :

(Image)

Or using the W/A component from Raw Screen Position for the B input, which is the same but only works for perspective projections, while abs(positionVS.z) should work in orthographic too!

Though this method tends to have some warping as the camera rotates, likely because depth values are relative to the camera plane.

Similar to the Fog Plane Shader Breakdown, I instead tend to reconstruct the world position from depth, then take the Y coordinate of that and subtract it from the Y of the water plane.

Provided the water plane GameObject isn’t marked to use static batching, we can obtain it’s Y coord from the Object node (Position output), which returns the origin point of the mesh. Alternatively, you could use a Float Property and just control this value from the material inspector.

(Image)

This produces a gradient of how deep the surface below the water is, which you could Step in the same way as the earlier example to produce edge foam - But more importantly since it doesn’t have that warping, and assuming the shore/beach terrain is sloped, we can also map waves using it!

You can optionally have a Multiply node after this to apply scaling - though it’ll also scale depending on the steepness of the beach.

May also want to Saturate to clamp any values outside the 0-1 range, and then One Minus to invert the gradient - so it matches how the UV method below works and the graphs later produce correct results.

!
This output may be used multiple times, so if you want to avoid long messy connections, you could use my ShaderGraphVariables package to add Register Variable & Get Variable nodes (installed via Package Manager -> Add package via git URL : https://github.com/Cyanilux/ShaderGraphVariables.git)

(Optional skip to Approaching Waves section if you’re following this method)

UV-Based Shoreline

Another way to obtain a gradient towards the beach would be to use a custom mesh, where you could map Vertex Colors or unwrap UVs in a particular way. (This could also probably work on a tileset for a procedurally generated approach, i.e. a sections of beach which piece together to form an island)

Unlike the depth approach, this would let us map waves to the water surface, rather than projected below. Using UVs also allows us to map textures of the waves, for more control over what they look like (and potentially cheaper if you swap out some of the calculations for additional textures? - but that’s something you’d have to test/profile)

As an example of how you might set up a mesh for this, if we model the shoreline water as a strip of quads, in Blender you can then UV unwrap using these steps :

(Image)

After this, I used a duplicate of this mesh to model the section of beach, where the top set of vertices matches up to avoid any seams.

Also optional and may not be important right now, but in the water mesh I also added a loop cut (near the top / beach-side of the quads) and moved the lower quads (water-side) down slightly, matching that loop with the slope of the beach (but slightly above to avoid any z-fighting). This creates a sloped section in the shoreline mesh will be where the waves move back and forth.

In Shader Graph, start by using the UV node then Swizzle - in my case using the “Y” axis. (Alternatively Split and use G port). This obtains a gradient towards the shore/beach, which is important if we want to map waves and have them scroll in that direction.

(Image)

The output of this may be used multiple times, but instead of long connections you can easily duplicate this group as it’s small and not doing any calculations.

Approaching Waves

A few stylised water shaders I’ve seen (and made) actually have some small scrolling lines, as a way to “dissolve/combine” depth based edge foam into the rest of the water. That’s the same technique but typically much more squished and scrolling in the opposite direction.

Firstly, we can introduce some noise (either by sampling a seamless noise texture or procedurally via Gradient Noise node) to distort the gradient a little, and then use Time to make the waves scroll/move - In this case using Subtract, as the gradient is 0 at the beach and increases to 1 in the water. (If it’s reversed for you, can Add the time instead, or use One Minus on the gradient to invert it)

(Image)

To create repeating lines, we can then Multiply by some value (e.g. 3.2) and either use :

Then Smoothstep to remap the range of values, making the lines thinner. It also clamps any negatives. (Can alternatively use Inverse Lerp & Saturate)

(Image)

To have the waves fade in, use Smoothstep on the gradient (e.g. with an Edge1 of 0 and Edge2 of 0.5), and Multiply to apply that

(Image)

You can also optionally mask the waves with some noise to break up the lines a bit, as shown below. If using the depth-based method for the shoreline gradient, using an XZ planar mapping may be more suitable than the UVs on the water mesh.

(Image)

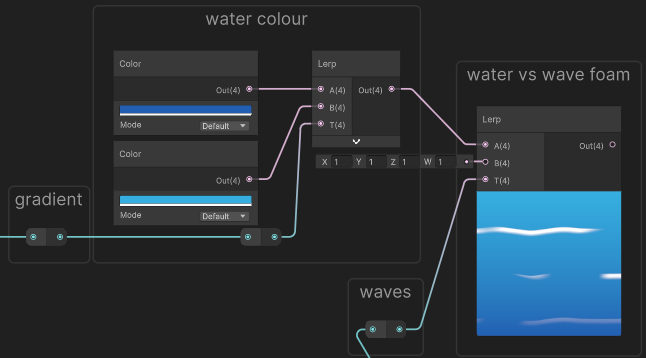

For applying colours, I’m using Lerp with the the shoreline gradient in the T input, to interpolate between a blue and cyan - so the colour gets lighter at the shore. Then another Lerp to apply the wave foam colour (set to white / 1,1,1,1)

(Image)

!
I’m using the UV-Based gradient so the colours appear properly in previews here. If using the Depth-Based gradient, be aware that previews may be solid-coloured but should still work in scene when projecting on other objects

Swash Wave

In real life after waves hit the shore, a foamy layer of water (known as swash in geography) moves up the beach until it loses enough energy, then retreats back to the sea. The easiest way to simulate this in the shader (that I could think of), is to add another wave which moves back and forth, synced with the scrolling of the others (though I won’t lie, it took me far too long to figure out how to properly sync it 🙃)

To handle that motion, we can use a Cosine node (or Sine if you use that for the approaching waves). This may not be entirely accurate to real life, where the flow of water up the shore tends to have a shorter duration than when it retreats, but I think it’s good enough.

The input needs to be Time, multipled by the same “Scroll Speed” and “Wave Count” (value in “no. of waves” group) as used in the Approaching Waves section above. I’ve converted those to Float Properties in both places, so they can be adjusted from the material and always match.

We also need to Multiply by the TAU Constant - (unless you use the Cosine/Sine method for repeating lines and already removed the Divide earlier!)

(Image)

Those multipliers means after one period/cycle of the swash wave (a back-and-forth), one approaching-wave will pass. The actual motions won’t line up since one wave is sinusoidal and the other scrolling linear - but the durations are the same. But the phase might not match up yet, so as shown above, we also need to Add a Float Property which I’ve named “Time Offset”. This can be controlled from the material so we can manually sync it. (e.g. a value of roughly -2.5 seems good when using a Wave Count of 3.2)

Since the Cosine returns a value between -1 and 1, we Multiply by a small value to adjust how far the wave will move. You miiight want this value dependant on the Wave Count (e.g. calculated as 0.5 * (1/waveCount)), but it’s not that important to match perfectly. I’m just hardcoding it as 0.1 here.

We apply this to the distorted shoreline gradient from earlier using an Add node, then Smoothstep to remap and position the wave (centered at around 0.8 along that 0-1 gradient)

Combine Waves

The output of this can be combined with the approaching waves using a Maximum node, before the Lerp that applies the foam colour (“water vs (wave) foam” group)

(Image)

Also take the output of the “apply offset” group and use another Smoothstep with Edge1 and Edge2 values of 0.85 and 0.84 to produce a mask of where the water/swash ends. We’ll temporarily use this for the Alpha output in the Master Stack.

(Image)

Could alternatively use Step here, but I’m using Smoothstep so the edge is slightly anti-aliased. There are also better ways to make an anti-aliased version of step with fwidth/DDXY node, such as in this article by Ronja.

Adding Voronoi

That could work as-is, but it’s a little boring, so lets add a texture to the swash wave. I’ll be using this seamless Voronoi/Worley Noise I baked out. (The Voronoi node could also work but using a texture here is likely cheaper)

(Image)

Seamless Voronoi Texture (CC0)

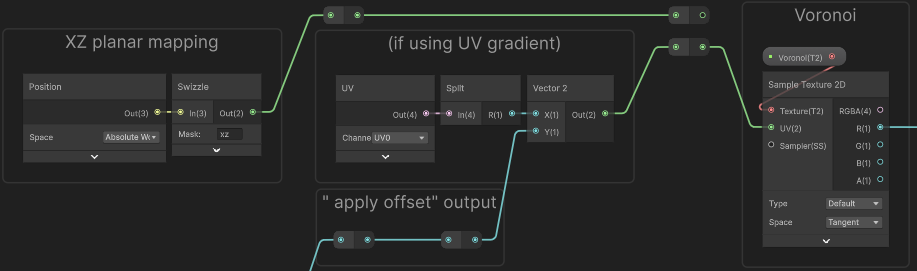

Use the Sample Texture 2D node to sample that texture. Like the earlier noise, using a XZ planar mapping for the UV input may be more suitable if using the Depth-Based Shoreline method.

For the UV-Based Shoreline we can make the texture move with the swash wave, by using the output of the “apply offset” from the last graph screenshot in the Y of a Vector2 node, with the X set to the R/X of the UV

(Image)

To combine this texture with our wave, we can Multiply the R output with a small value (e.g. 0.15) then Add in between the “apply offset” group and Smoothstep

Animating Values

To better animate the wave, take the output of the Cosine / “swash motion” group and remap it into a 0-1 range using an Inverse Lerp node using A and B inputs set to -1 and 1. (Alternatively can Multiply by 0.5 then Add 0.5)

One Minus to invert this, producing a value of 0 when the wave is retreated, and 1 when fully up the beach/shore. We can Multiply this by our voronoi (before the Add) so the texture fades in as it approaches the shore.

To add a bit of a “dissolve” effect, we can also animate the Edge1 (on Smoothstep) using the Inverse Lerp output into the T of a Lerp, with A set to 0.7 and B set to 0.8. (You can adjust these values if you want, but make sure B isn’t greater than the Edge2 input or the Smoothstep result flips!)

(Image)

Wet Sand

A somewhat important effect I wanted to simulate was letting the swash wave leave the sand behind wet - which is basically just darker (and more reflective)

Instead of making pixels/fragments beyond the swash wave completely transparent, we can use a black colour with a very low alpha. This is a main reason why I chose to use alpha blending instead of vertex displacement (which might also show too much of the geometry when as it clips)

For the Base Color port in the Master Stack, we can take the current result and Multiply by what we currently have in the Alpha (output of “sand (0) / water (1)” group)

(Image)

For the Alpha port, we’ll re-use the distorted gradient (from the start of the Approaching Waves section - quite a while ago!), and another Smoothstep to mask out the area we want the sand to be wet in. This is also to avoid seeing the top edges of the shoreline geometry/mesh.

We’ll combine this with the current alpha value using Add then Saturate to make sure values don’t go above 1. (Can alternatively use Maximum)

(Image)

To allow the water and wet sand to be shiny, could likely also use a duplicate of this setup for the Smoothness port, assuming a Lit Graph type. But with a higher value than 0.2. I rarely work with PBR so I’ll leave that up to you.

I guess you could also calculate specular highlights manually even in an Unlit Graph - my Custom Lighting package has a node that might help with that for URP.


Thanks for reading! 😊
